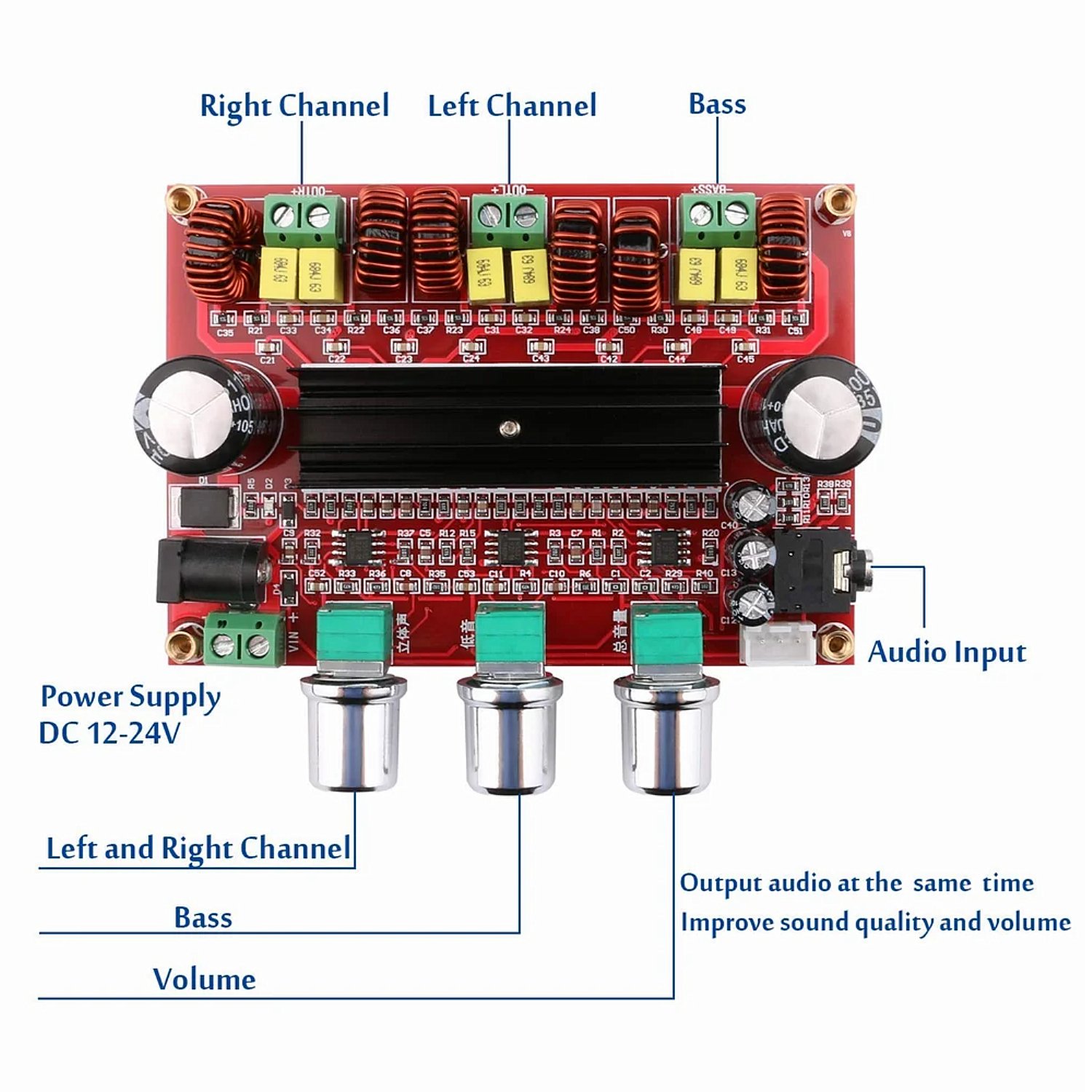

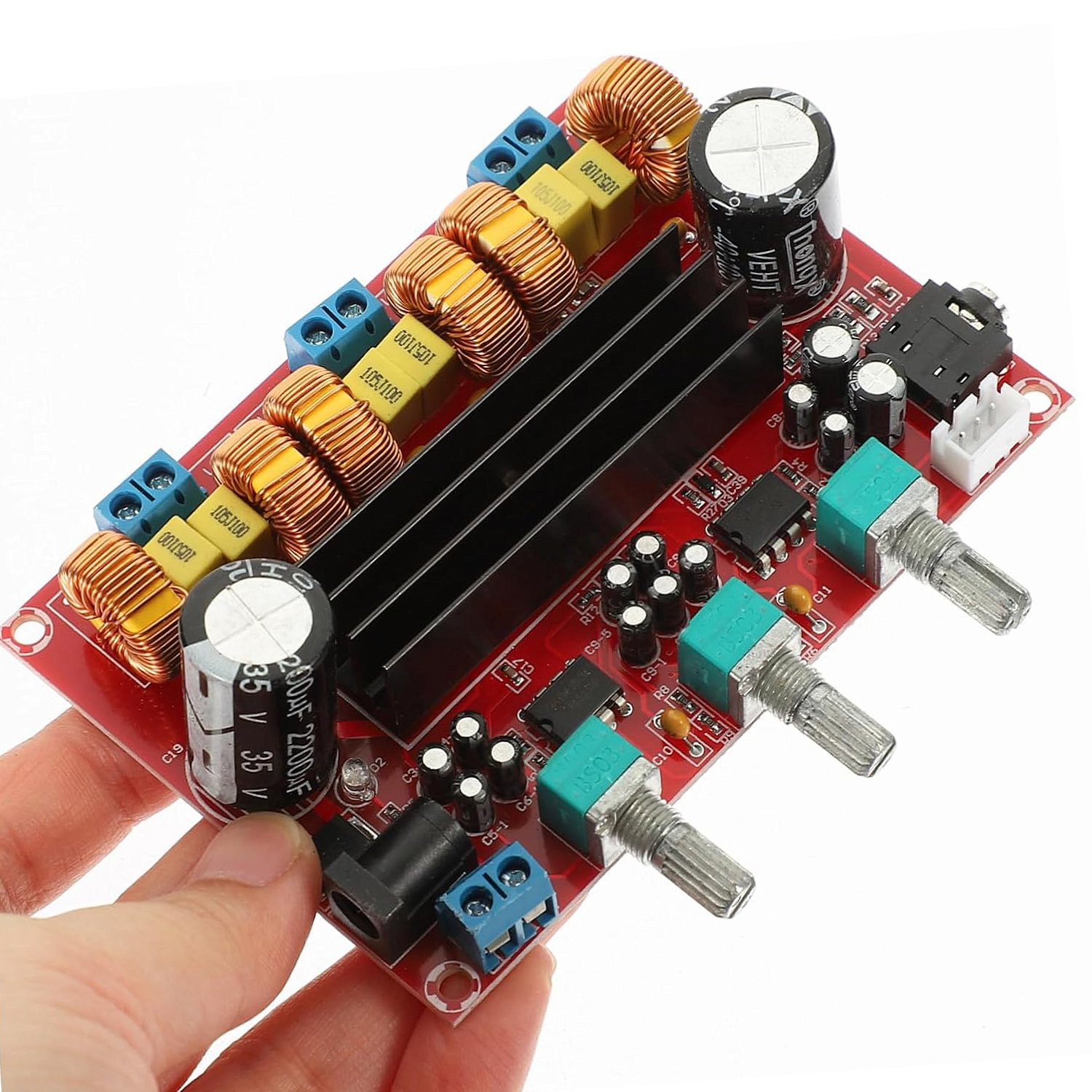

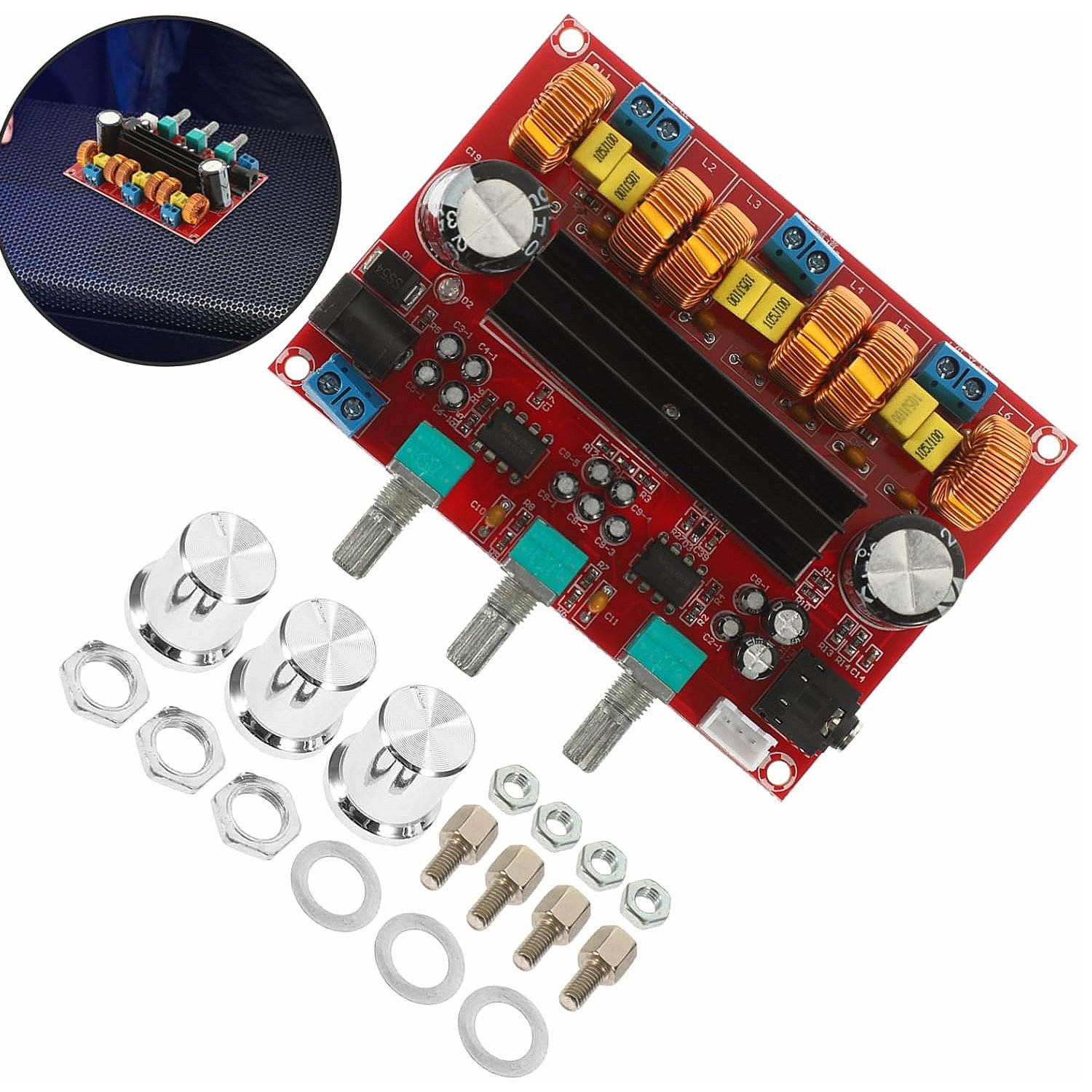

HW-302 XH-M139 2.1 channel digital power amplifier board 12V to 24V wide voltage TPA3116D2 module
Specification
- Operating voltage : 12V to 24V
- Power rating : 2*50W + 100W
- Output load : 4Ω to 8Ω
- Frequency range : 14KHz to 100KHz
- Operating frequency : 1.2MHz

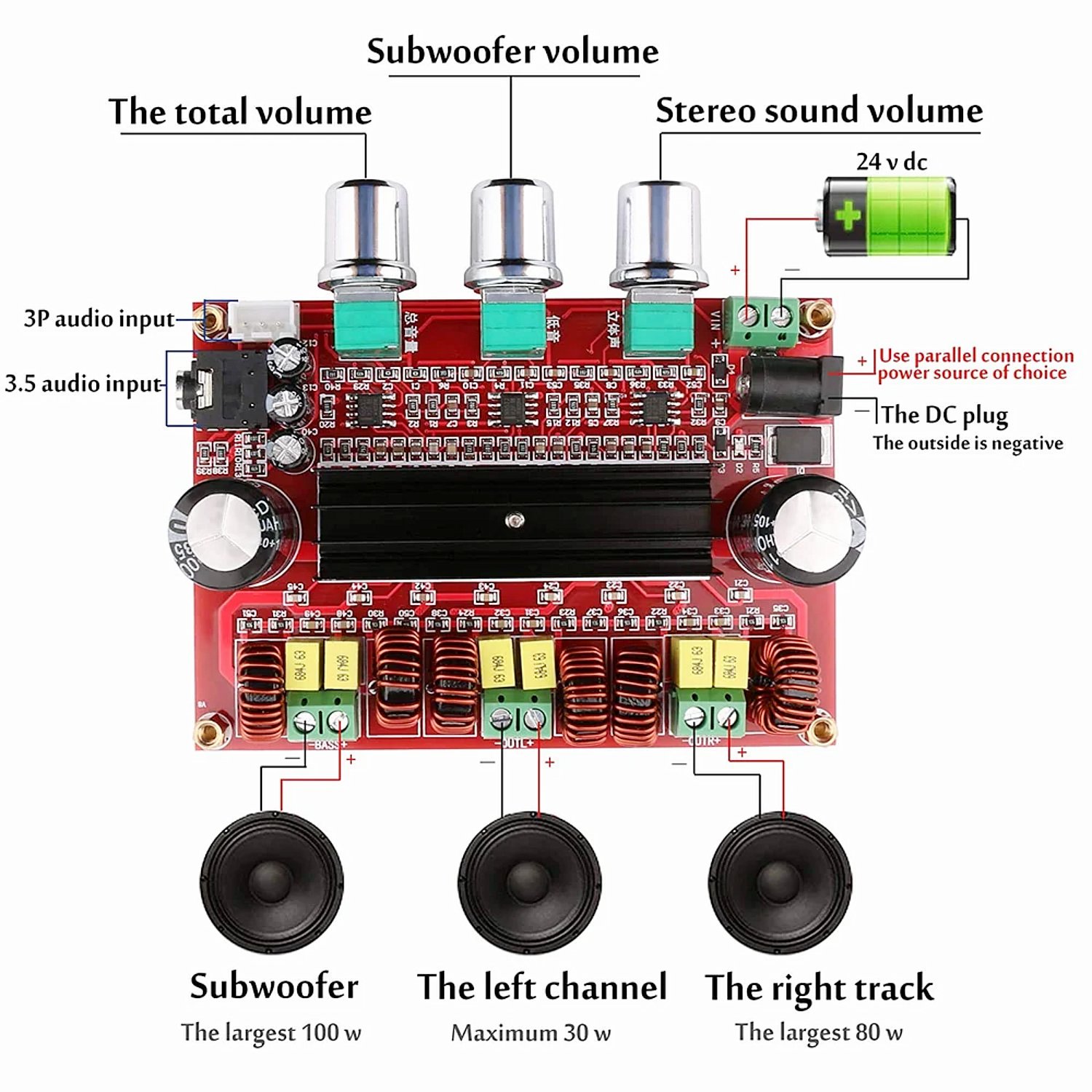

- Number of channels : 3 channels(Left channel + Right channel + Subwoofer)
SKU: HW-302-XH--2405
Rs.649.00 (Include Tax)
Rs. 550.00 + 18% GST (Rs. 99.00)
Perfectly Done
HW-302 XH-M139 2.1 channel digital power amplifier board
12V to 24V wide voltage TPA3116D2 module
This is a newly design digital audio amplifier module. It is a high-efficiency class D audio power amplifier. The module has the latest and original TPA3116 core technology. This module is equipped with short circuit protection functions like overvoltage and output current limit. It is suitable for heavy loads of 2.1 home theater sound systems. A heatsink is also attached to this board for heat dissipation. It gives a power output of 2 x 50W and 100W. This module has 3 channels out of which one is the left channel, the second is the right channel and the third is used for the subwoofer.
Features
- Use to amplify low input signals into higher output signals
- To produce better sound quality
- Use to drive three speakers at the same time.
Technical Specifications
