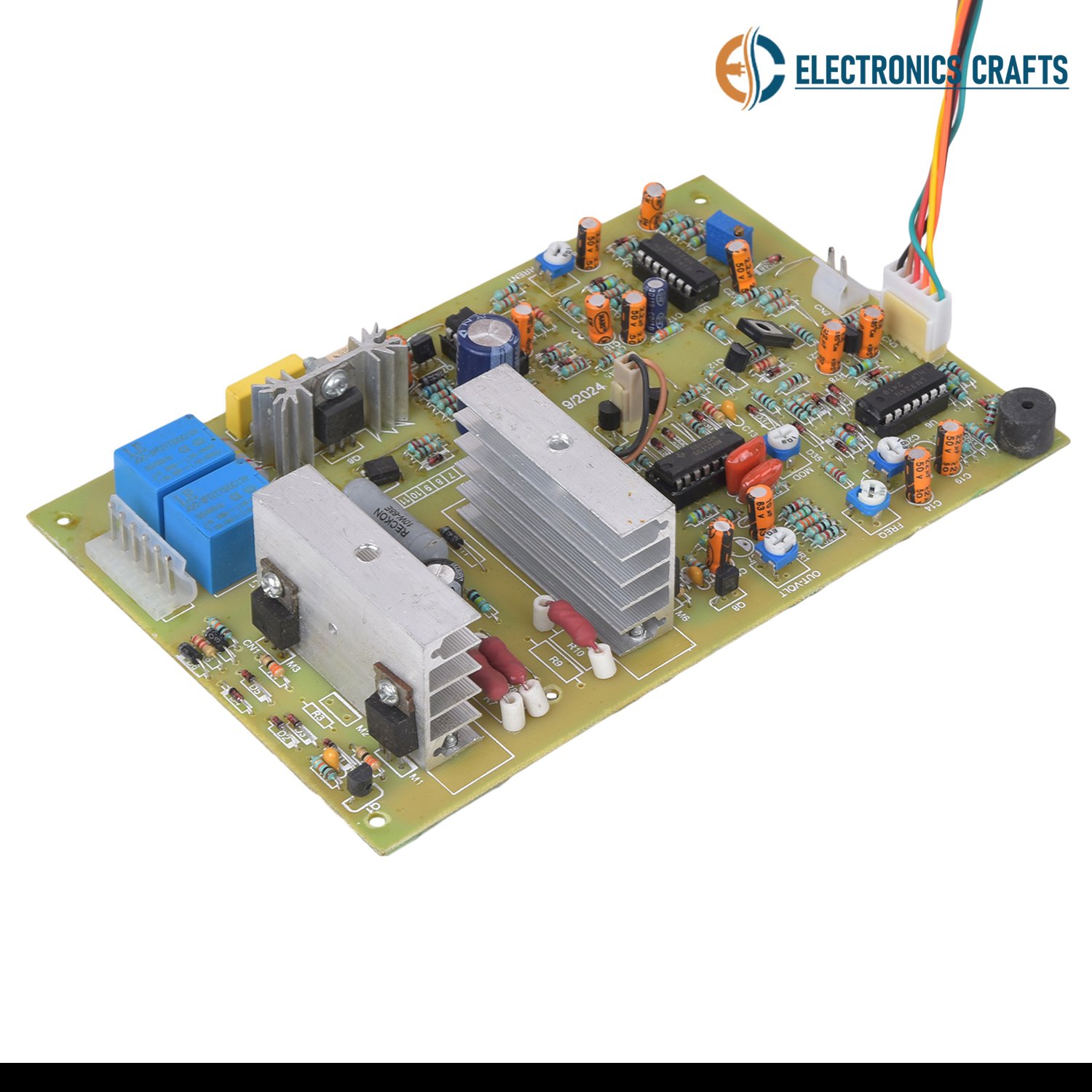

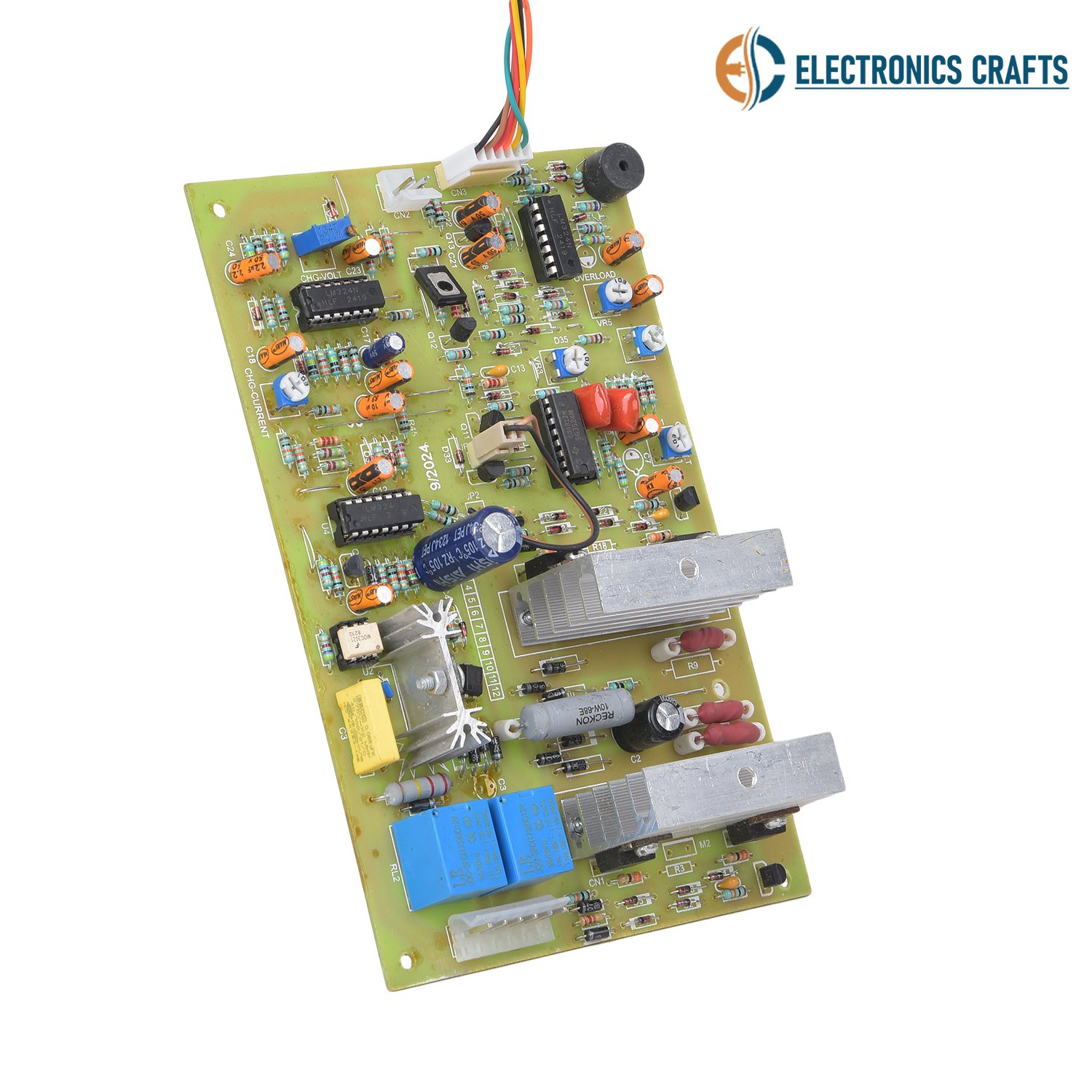

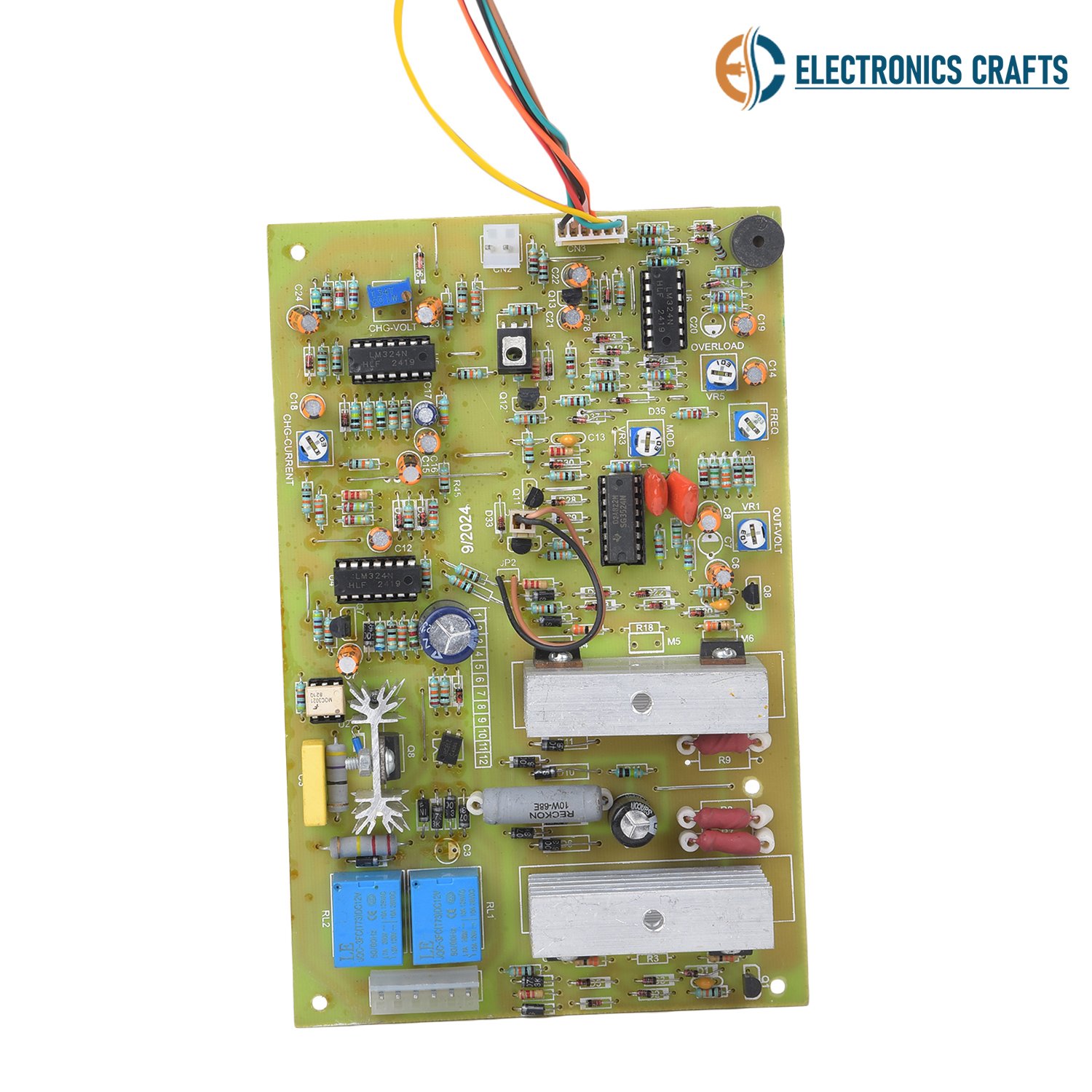

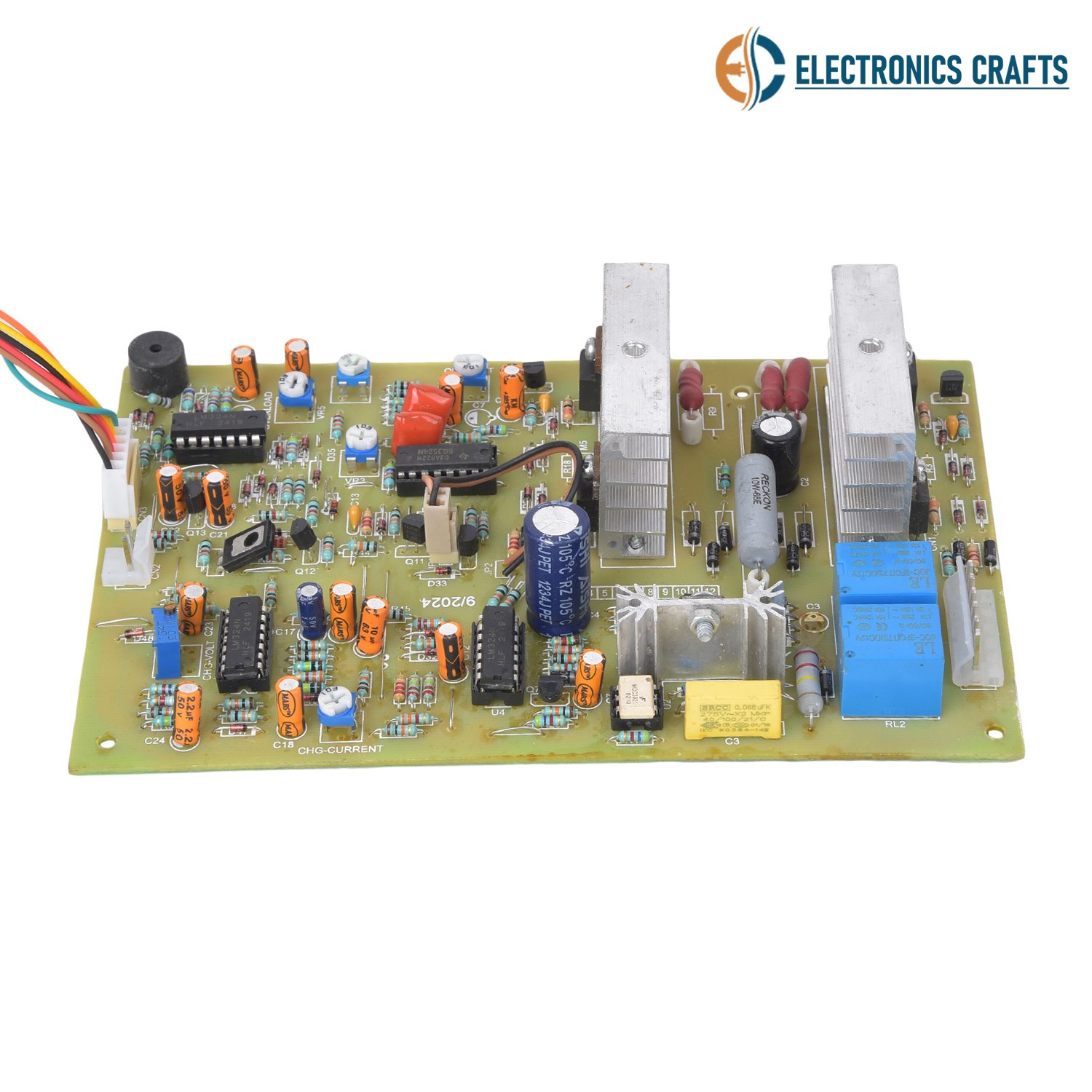

300W Automatic Square Wave Inverter Circuit – Reliable 12V DC to 230V AC Power Conversion

The 300W Automatic Square Wave Inverter Circuit offers a dependable and cost-effective solution for powering small household appliances and electronics from a 12V battery. It efficiently converts 12V DC into 220V–230V AC using a square wave output, making it ideal for resistive loads such as fans, CFLs, phone chargers, and radios.

Designed for DIY enthusiasts, solar system builders, and emergency backup setups, this inverter features automatic operation and built-in overload protection to prevent component damage during peak loads. Its compact and efficient layout makes it easy to install in various enclosures or project builds.Get reliable backup power with this 300W Automatic Square Wave Inverter Circuit. Converts 12V DC to 230V AC, perfect for fans, lights, and small tools. Ideal for DIY and solar projects.

Key Features:

1.  300W Output Power – Runs low to mid-range appliances like lights, chargers, and small fans.
2.  Automatic Switching – Self-start and load detection with minimal user input.
3.  Square Wave Output – Cost-efficient design ideal for non-sensitive electronics.
4.  Overload & Short-Circuit Protection – Enhanced safety and long-term durability.
5.  Compact Design – Lightweight and space-saving for easy integration.

​

Applications:

•  Emergency Power Backup – For CFL bulbs, fans, mobile chargers, and radios.
•  DIY Inverter Projects – For hobbyists and students learning power electronics.
•  Solar Systems – Works with solar battery banks for off-grid use.
•  Portable Power Units – Lightweight design ideal for camping or remote areas.
•  Educational Use – Demonstrates inverter principles in electronics labs and workshops.
