WI-FI & IOT DEVELOPMENT BOARDS

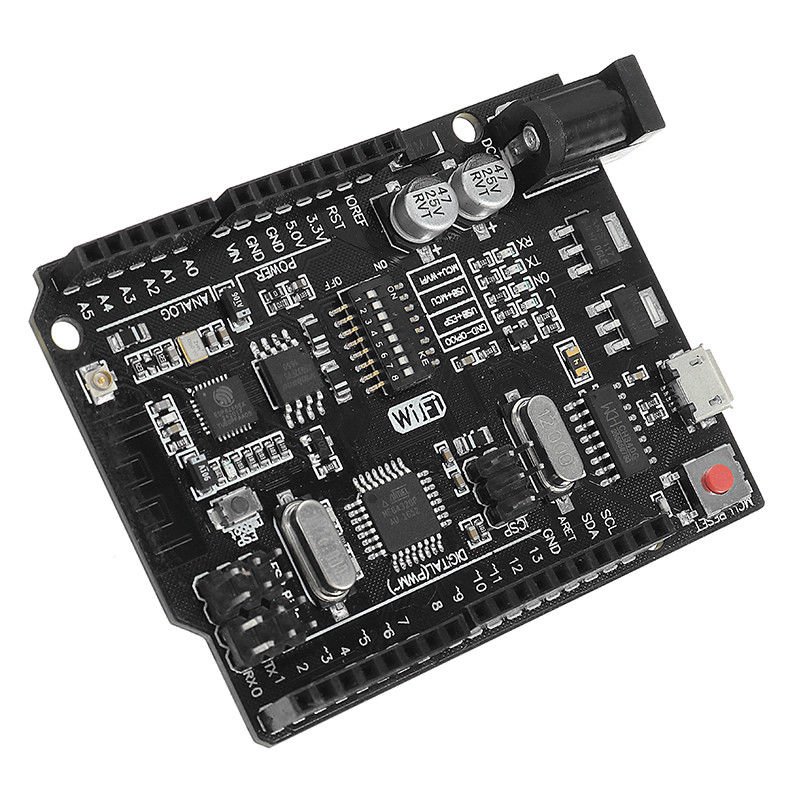

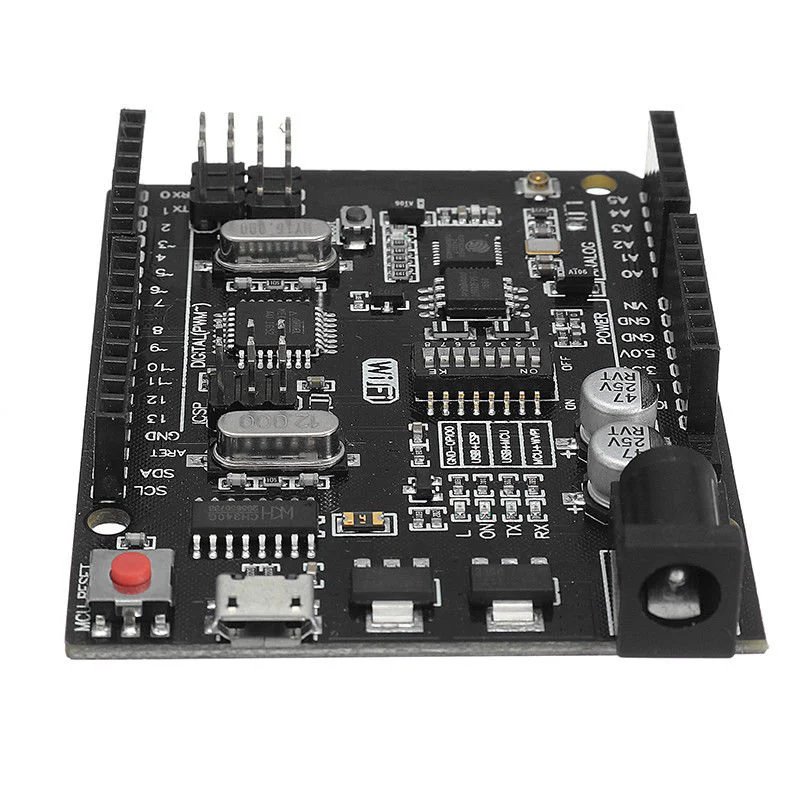

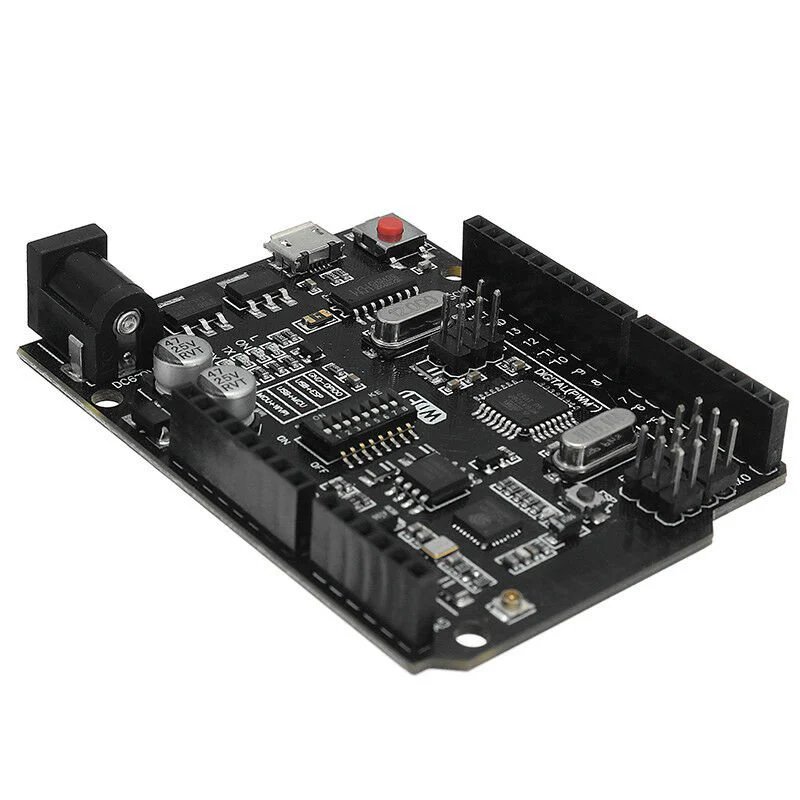

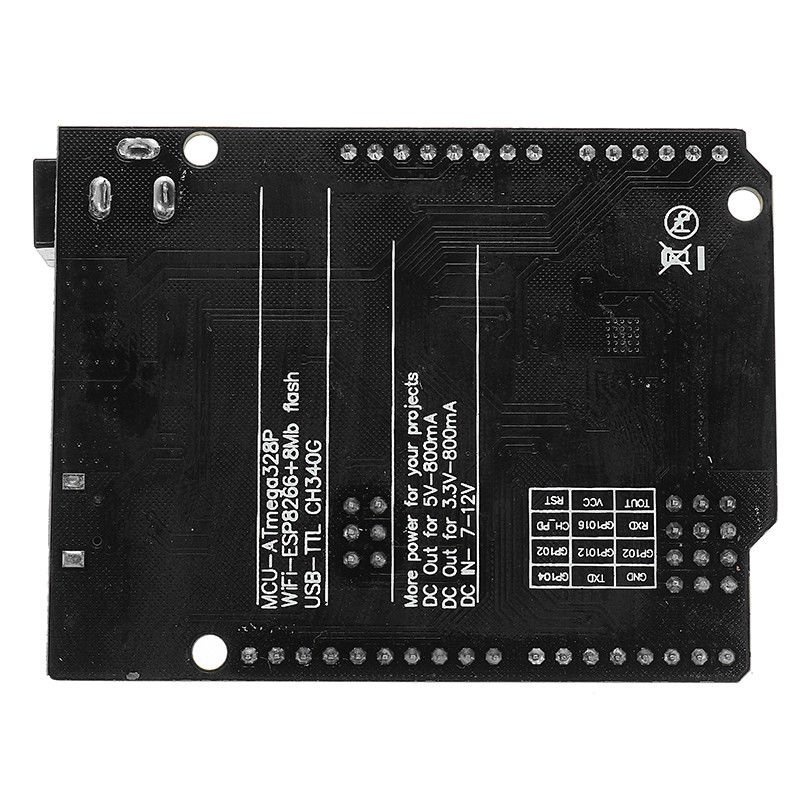

UNO+WiFi R3 Development Board (ATmega328P + ESP8266) – Dual MCU IoT Board
Specification:-
- USB-TTL converter
- Logic Level: 5V
- Operating Supply Voltage: 5V
- Digital I/O Pins: 14
- Analog I/O Pins: 6
- Operating temperature: −40С°/+125С°
| Connection | DIP | ||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | |
| ATmega328<->ESP8266 | ON | ON | OFF | OFF | OFF | OFF | OFF |
| USB <->ATmega328 | OFF | OFF | ON | ON | OFF | OFF | OFF |
| USB<->ESP8266 (Update firmware or sketch) | OFF | OFF | OFF | OFF | ON | ON | ON |
| USB<->ESP8266 (communication) | OFF | OFF | OFF | OFF | ON | ON | OFF |
| All independent | OFF | OFF | OFF | OFF | OFF | OFF | OFF |
SKU: UNO+WIFI-R-3698
MRP: RS.829.55
Rs.549.00 (Include Tax)
Rs. 465.25 + 18% GST (Rs. 83.75)
Perfectly Done
UNO+WiFi R3 Development Board (ATmega328P + ESP8266) – Dual MCU IoT Board
This UNO+WiFi R3 board integrates the power of ATmega328P with ESP8266 WiFi module on a single board. It is designed for seamless development of Internet of Things (IoT) projects, combining the ease of Arduino programming with built-in WiFi capabilities. The board can be used either with the ATmega328P or the ESP8266 — or both — and allows flexible switching between the two via onboard DIP switches.
Features :-
- Integrated WiFi
- Multiple I/O Ports
- Separate Operation Modes
- Perfect for creating systems that monitor environmental conditions
Technical Specifications
