Specifications:
- Model: CD4047
- Package Type: DIP-14 (Dual Inline Package – 14 pins)
- Operating Voltage Range: 3V to 15V
- Low Power Consumption: CMOS technology
- Trigger Input Types: Positive edge and negative edge
- Temperature Range: -55°C to +125°C
- Pin Count: 14
SKU: CD4047-MON-3446
Rs.39.00 (Include Tax)
Perfectly Done

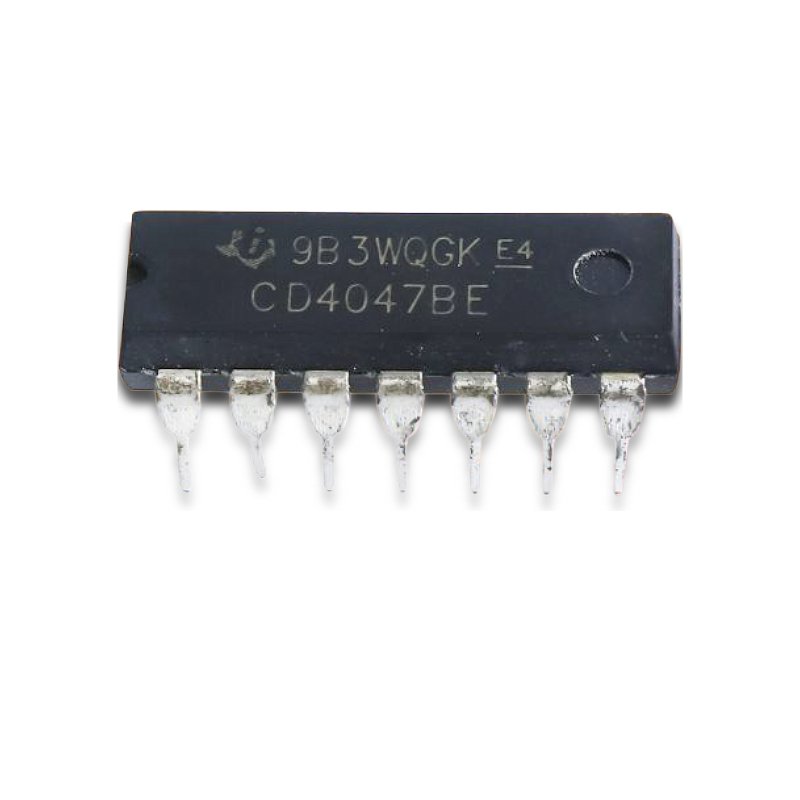

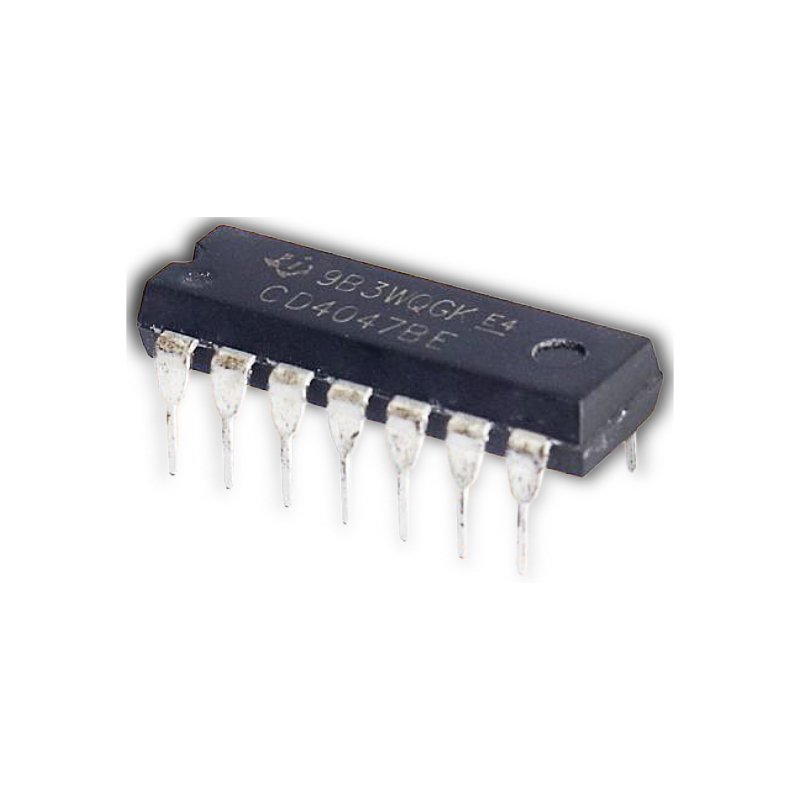

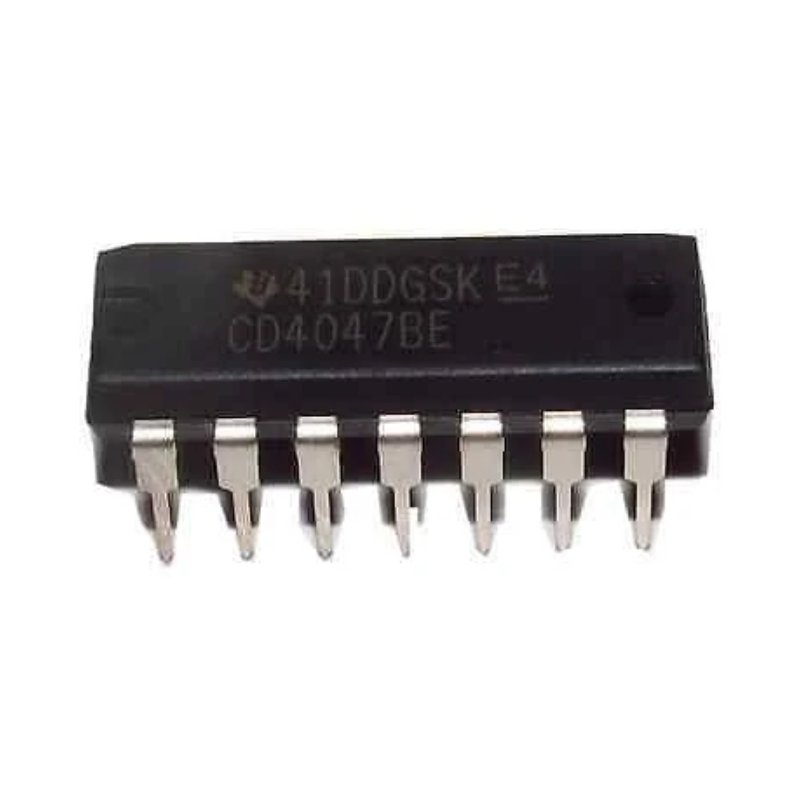

CD4047 Monostable/Astable Multivibrator IC – 14-Pin CMOS Timer (Pack of 2 Pcs)
The CD4047 is a versatile CMOS multivibrator IC that can be configured as either a monostable or an astable multivibrator using minimal external components. It features a wide supply voltage range, low power consumption, and stable output performance, making it suitable for a wide range of timing, pulse generation, oscillator, and delay applications.In astable mode, the CD4047 operates as a free-running oscillator, while in monostable mode, it acts as a one-shot pulse generator. Its complementary Q and Q̅ outputs make it ideal for digital logic interfacing, waveform generation, and square wave applications.

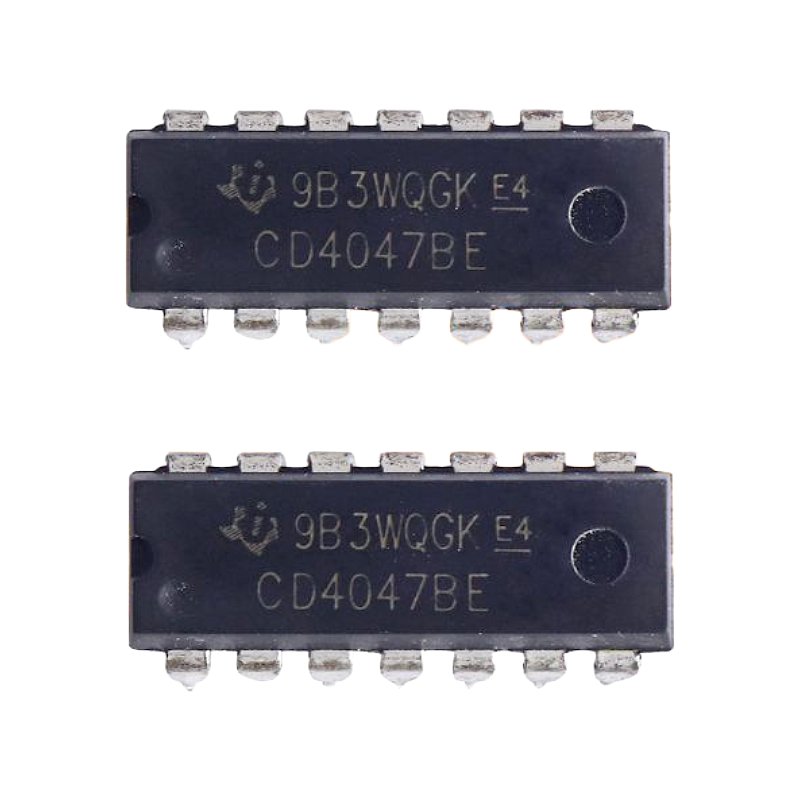

This pack includes 2 pieces of the 14-pin CD4047 IC, perfect for projects, experiments, and spares.
Features:
- Dual-mode operation: Astable and Monostable
- Operates over a wide supply voltage (3V to 15V)
- DIP-14 package – easy for breadboard and PCB use
- omplementary outputs (Q and Q̅) for easy interfacing
- Ideal for timers, oscillators, and pulse generators
Technical Specifications
| Product Details |
|---|
Specifications:
|
